Kabelbeschriftung > Schrumpfschlauch beschriften
Produktbeschreibung
Produktbeschreibung
Das Basismaterial der HTX-S3-Schrumpfschlauchmarkierer ist UL gelistet und erfüllt die hohen Anforderungen der Materialeigenschaften unter anderem für die Luft- und Raumfahrt-, sowie der Verteidigungstechnik. Hergestellt aus schwer entflammbarem, strahlenvernetztem Polyolefin mit einem Schrumpfverhältnis von 3:1 decken die HTX-S3 Schrumpfschlauchmarkierer einen großen Bereich an Leitungsdurchmessern ab.
Die Anordnung der HTX-S3-Schrumpfschlauchmarkierer wurde so gestaltet, dass eine zusätzliche Beschriftung auf dem Trägerpapier möglich ist. Dies erleichtert die Zuordnung und die Abarbeitung der Markierer beim Konfektionieren der Kabel.

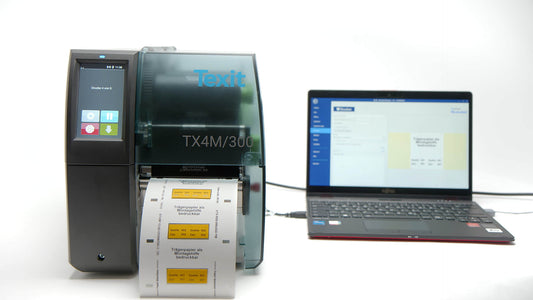

Für ein optimales Druckergebnis empfehlen wir die Verwendung unserer Thermotransferdrucker und Thermotransferfolien.
Für dieses Produkt können Sie gratis und unverbindlich Musterprodukte anfragen!
Größentabelle & Artikelbezeichnungen
Größentabelle & Artikelbezeichnungen
Artikelbezeichnung | Artikelnummer | Größe ungeschrumpft, Durchmesser in mm (Zoll) x Länge in mm | Farbe |
|
|
|
|
---|---|---|---|---|---|---|---|
HTX-S3-030x019-WE | 59204 | 3,00 (1/8″) x 19,00 | weiß | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
HTX-S3-030x019-YW | - | 3,00 (1/8″) x 19,00 | gelb | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
HTX-S3-030x025-WE | 59202 | 3,00 (1/8") x 25,00 | weiß | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
HTX-S3-030x025-YW | 59102 | 3,00 (1/8") x 25,00 | gelb | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
HTX-S3-030x038-WE | 59201 | 3,00 (1/8") x 38,00 | weiß | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
HTX-S3-030x038-YW | - | 3,00 (1/8") x 38,00 | gelb | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
HTX-S3-030x050-WE | 59200 | 3,00 (1/8") x 50,00 | weiß | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
HTX-S3-030x050-YW | - | 3,00 (1/8") x 50,00 | gelb | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
HTX-S3-048x019-WE | 59214 | 4,80 (3/16") x 19,00 | weiß | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
HTX-S3-048x019-YW | - | 4,80 (3/16") x 19,00 | gelb | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
HTX-S3-048x025-WE | 59212 | 4,80 (3/16") x 25,00 | weiß | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
HTX-S3-048x025-YW | 59112 | 4,80 (3/16") x 25,00 | gelb | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
HTX-S3-048x038-WE | 59211 | 4,80 (3/16") x 38,00 | weiß | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
HTX-S3-048x038-YW | 59111 | 4,80 (3/16") x 38,00 | gelb | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
HTX-S3-048x050-WE | 59210 | 4,80 (3/16") x 50,00 | weiß | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
HTX-S3-048x050-YW | 59110 | 4,80 (3/16") x 50,00 | gelb | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
HTX-S3-060x019-WE | 59224 | 6,00 (1/4") x 19,00 | weiß | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
HTX-S3-060x019-YW | - | 6,00 (1/4") x 19,00 | gelb | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
HTX-S3-060x025-WE | 59222 | 6,00 (1/4") x 25,00 | weiß | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
HTX-S3-060x025-YW | 59122 | 6,00 (1/4") x 25,00 | gelb | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
HTX-S3-060x038-WE | 59221 | 6,00 (1/4") x 38,00 | weiß | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
HTX-S3-060x038-YW | 59121 | 6,00 (1/4") x 38,00 | gelb | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
HTX-S3-060x050-WE | 59220 | 6,00 (1/4") x 50,00 | weiß | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
HTX-S3-060x050-YW | 59120 | 6,00 (1/4") x 50,00 | gelb | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
HTX-S3-090x019-WE | 59234 | 9,00 (3/8") x 19,00 | weiß | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
HTX-S3-090x019-YW | 59134 | 9,00 (3/8") x 19,00 | gelb | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
HTX-S3-090x025-WE | 59232 | 9,00 (3/8") x 25,00 | weiß | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
HTX-S3-090x025-YW | 59132 | 9,00 (3/8") x 25,00 | gelb | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
HTX-S3-090x038-WE | 59231 | 9,00 (3/8") x 38,00 | weiß | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
HTX-S3-090x038-YW | 59131 | 9,00 (3/8") x 38,00 | gelb | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
HTX-S3-090x050-WE | 59230 | 9,00 (3/8") x 50,00 | weiß | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
HTX-S3-090x050-YW | 59130 | 9,00 (3/8") x 50,00 | gelb | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
HTX-S3-120x019-WE | - | 12,00 (1/2") x 19,00 | weiß | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
HTX-S3-120x019-YW | - | 12,00 (1/2") x 19,00 | gelb | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
HTX-S3-120x025-WE | 59242 | 12,00 (1/2") x 25,00 | weiß | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
HTX-S3-120x025-YW | 59142 | 12,00 (1/2") x 25,00 | gelb | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
HTX-S3-120x038-WE | - | 12,00 (1/2") x 38,00 | weiß | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
HTX-S3-120x038-YW | 59141 | 12,00 (1/2") x 38,00 | gelb | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
HTX-S3-120x050-WE | 59240 | 12,00 (1/2") x 50,00 | weiß | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
HTX-S3-120x050-YW | 59140 | 12,00 (1/2") x 50,00 | gelb | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
HTX-S3-180x025-WE | 59252 | 18,00 (3/4") x 25,00 | weiß | 7,00 - 17,00 | 25,00 - 50,00 | 2 | 1.000 |
HTX-S3-180x025-YW | 59152 | 18,00 (3/4") x 25,00 | gelb | 7,00 - 17,00 | 25,00 - 50,00 | 2 | 1.000 |
HTX-S3-180x038-WE | 59251 | 18,00 (3/4") x 38,00 | weiß | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
HTX-S3-180x038-YW | 59151 | 18,00 (3/4") x 38,00 | gelb | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
HTX-S3-180x050-WE | 59250 | 18,00 (3/4") x 50,00 | weiß | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
HTX-S3-180x050-YW | 59150 | 18,00 (3/4") x 50,00 | gelb | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
HTX-S3-240x038-WE | - | 24,00 (1,0") x 38,00 | weiß | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
HTX-S3-240x038-YW | 59161 | 24,00 (1,0") x 38,00 | gelb | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
HTX-S3-240x050-WE | 59260 | 24,00 (1,0") x 50,00 | weiß | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
HTX-S3-240x050-YW | 59160 | 24,00 (1,0") x 50,00 | gelb | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
HTX-S3-390x050-WE | 59270 | 39,00 (1,5") x 50,00 | weiß | 15,00 - 35,00 | 120,00 - 240,00 | 1 | 100 |
HTX-S3-390x050-YW | 59170 | 39,00 (1,5") x 50,00 | gelb | 15,00 - 35,00 | 120,00 - 240,00 | 1 | 100 |
HTX-S3 Schrumpfschlauchmarkierer, konfektioniert
HTX-S3
Schrumpfschlauch-markierer,
konfektioniert
:
:
:
:
:
